Ecco 3.5kVA Hybrid Solar Power Kit with 2.56kWh Lithium Battery & 3 x 460W Solar

Ecco 3.5kVA Hybrid Solar Power Kit with 2.56kWh Lithium Battery & 3 x 460W Solar Panels

Product Overview

The Ecco 3.5kVA Hybrid Solar Power Kit is a complete backup and solar energy solution designed for residential and light commercial applications. The system includes a 3500W pure sine wave hybrid inverter, 2.56kWh lithium battery storage, and three 460W monocrystalline solar panels for energy generation and backup power support.

Key Features

• 3.5kVA / 3500W Hybrid Inverter

• 2.56kWh LiFePO4 Battery Storage

• 3 x 460W Monocrystalline Solar Panels

• Pure Sine Wave Output

• Integrated MPPT Solar Charge Controller

• 100A Maximum MPPT Charge Current

• Expandable Battery Configuration

• Suitable for Backup and Solar Applications

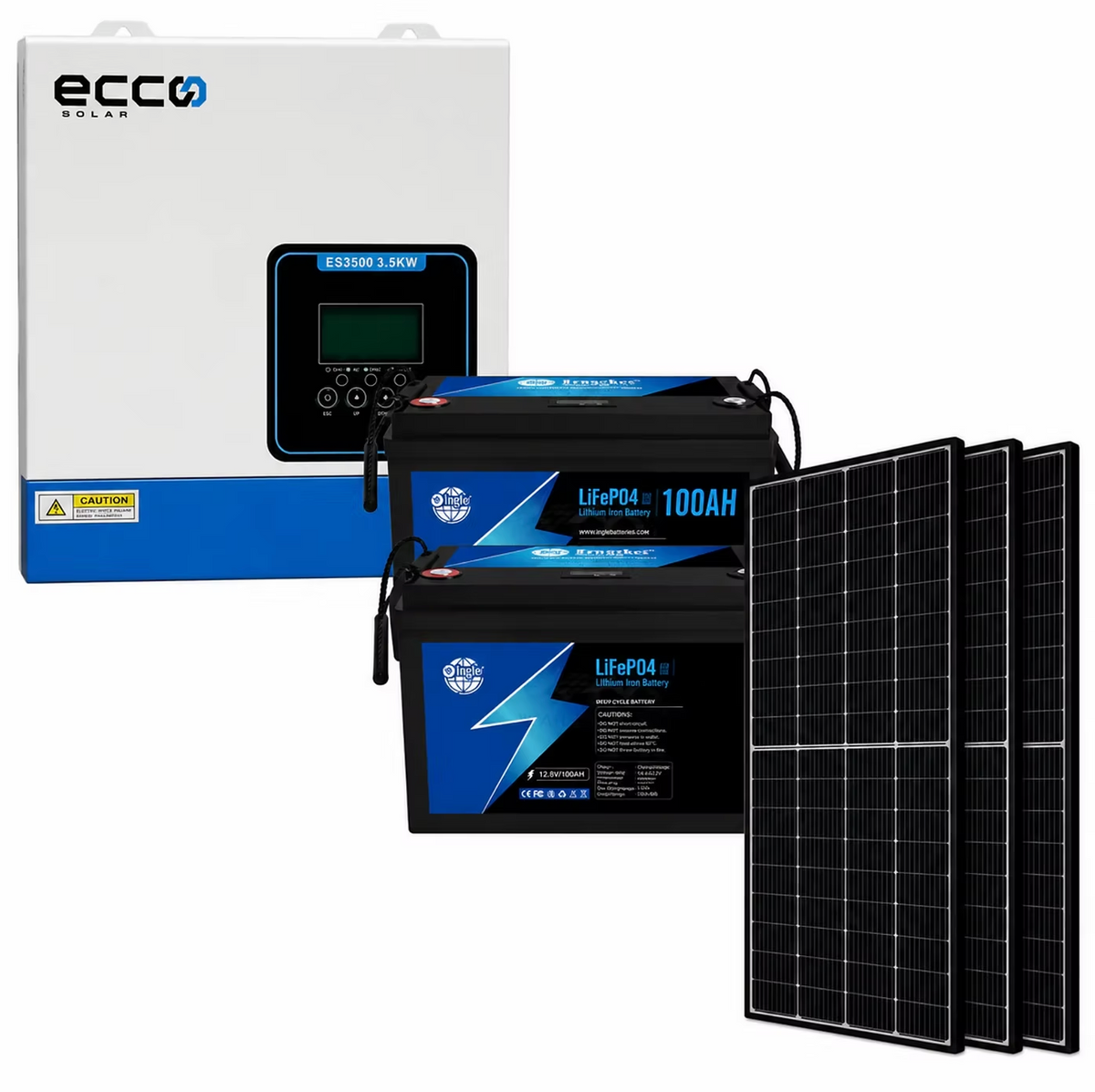

System Components

• 1 x Ecco ES3500 Hybrid Inverter

• 2 x 12.8V 100Ah LiFePO4 Lithium Batteries

• 3 x 460W Monocrystalline Solar Panels

• User Documentation

Inverter Specifications

• Model: ES3500

• Rated Power: 3500VA / 3500W

• Nominal Battery Voltage: 24V

• AC Input: 230VAC, 50/60Hz

• AC Output: 230VAC

• Maximum AC Charge Current: 60A

• Maximum Combined Charge Current (AC + PV): 100A

• Maximum PV Array Power: 4000W

• MPPT Charge Current: 100A

• Minimum Solar Voltage: 30VDC

• Maximum PV Open Circuit Voltage: 500VDC

• Output Waveform: Pure Sine Wave

Battery Specifications

• Battery Type: LiFePO4 (Lithium Iron Phosphate)

• Capacity per Battery: 1.28kWh

• Total Battery Capacity: 2.56kWh

• Nominal Voltage: 12.8V

• Capacity: 100Ah

• Maximum Discharge Current: 100A

• Cycle Life: Up to 3000 Cycles at 80% DOD

• Series and Parallel Expansion Supported

• Operating Temperature (Charging): 0°C to 45°C

• Dimensions (Per Battery): 329 x 173 x 216mm

• 3 Years Warranty
