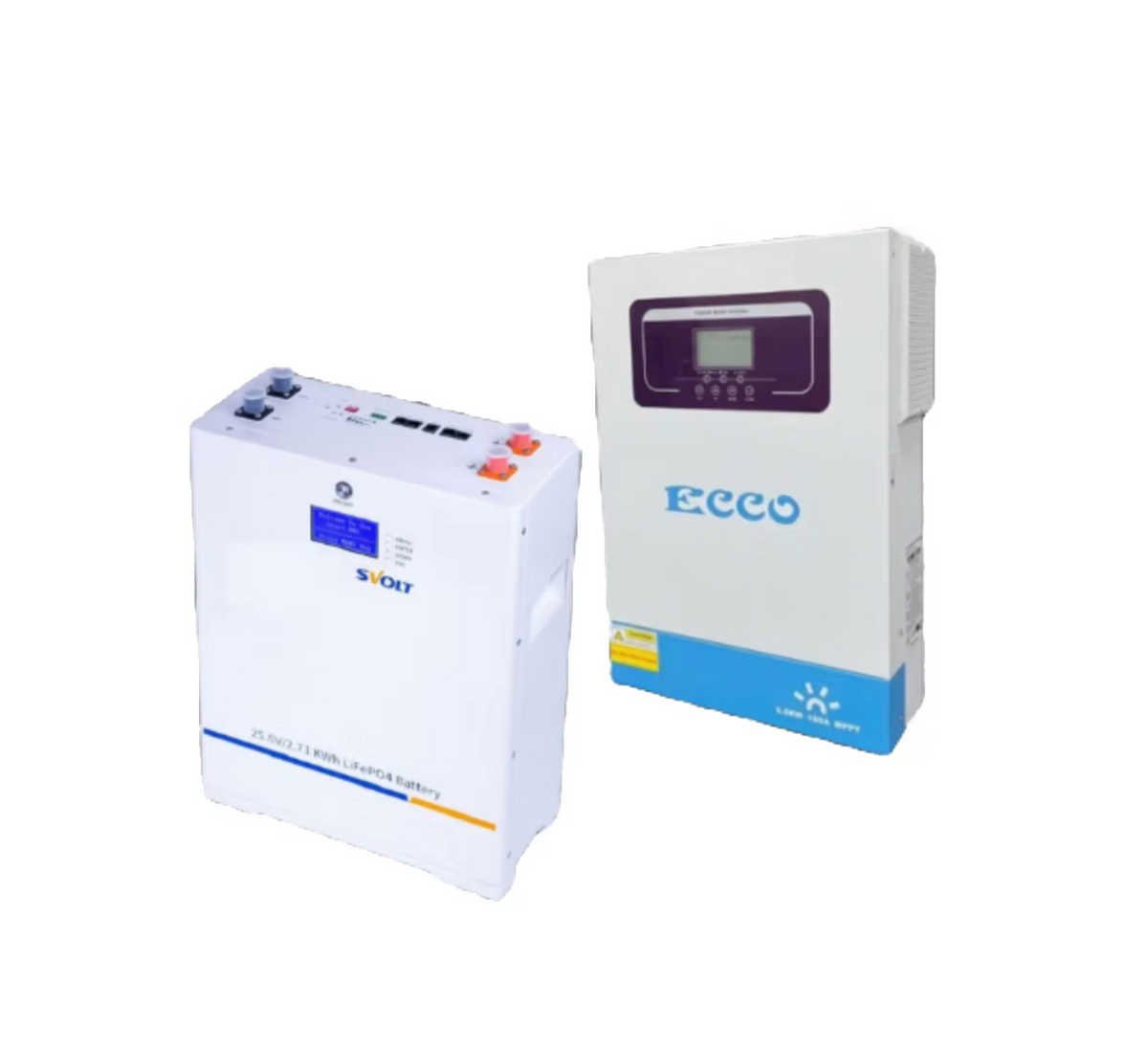

Ecco 3.5kVA Lithium Combo

The Ecco 3.5kVA Inverter & SVOLT 25.6V 106Ah Lithium Combo combines a hybrid inverter and lithium battery into a compact backup power and energy storage solution. Designed for residential and small business applications, this system supports solar integration, battery storage, and utility power management.

Featuring a built-in MPPT solar controller, pure sine wave output, and lithium battery compatibility, the system provides flexible power management for everyday energy requirements and backup power applications.

This Combo Consists of the Following:

• 1 x Ecco 3.5kVA Hybrid Inverter

• 1 x SVOLT 25.6V 106Ah Lithium Battery

Ecco 3.5kVA Hybrid Inverter

The Ecco 3.5kVA Hybrid Inverter combines inverter, battery charging, and solar charge controller functions into a single unit. Designed for solar and backup power systems, it supports multiple operating modes and battery management functions.

Key Features

• 3500VA / 3500W Output Capacity

• Pure Sine Wave Output

• Output Power Factor 1.0

• Built-In 100A MPPT Solar Controller

• High PV Input Voltage Range

• Multiple Output Priority Modes

• RS485 Communication Support

• Battery Equalization Function

• Compatible with Lithium Battery Systems

• Supports Parallel Operation (Parallel Version)

• Wireless Parallel Capability

• Suitable for Solar and Backup Applications

Inverter Specifications

General

• Rated Power: 3500VA / 3500W

• Battery Voltage: 24VDC

• Output Voltage: 230VAC

• Output Frequency: 50/60Hz

• Ingress Protection: IP21

• Indoor Installation

Solar Charger

• Maximum PV Array Power: 4000W

• MPPT Voltage Range: 120VDC – 500VDC

• Maximum PV Open Circuit Voltage: 500VDC

• Maximum MPPT Charge Current: 100A

AC Charger

• AC Input Voltage: 230VAC

• Input Frequency: 50/60Hz
